By Robert Baumgartner, Red Hat Austria, March 2023 (OpenShift 4.12, OpenShift distributed tracing data collection 0.63)
In this blog, I will guide you on
- how to use OpenTelemetry with a Quarkus application;
- how to forward your OpenTelemetry information to Tempo and display it in Grafana UI.
I will use distributed tracing to instrument my services to gather insights into my service architecture. I am using distributed tracing for monitoring, network profiling, and troubleshooting the interaction between components in modern, cloud-native, microservices-based applications.
Using distributed tracing lets you perform the following functions:
- Monitor distributed transactions
- Optimize performance and latency
- Perform root cause analysis
I am using Red Hat OpenShift distributed tracing data collection. This component is based on the open source OpenTelemetry project.
This document was written on the basis of OpenShift 4.12. See Distributed tracing release notes.
OpenShift distributed tracing data collection Operator is based on OpenTelemetry 0.63.1.
OpenTelemetry and Grafana Tempo
OpenTelemetry is a collection of tools, APIs, and SDKs. Use it to instrument, generate, collect, and export telemetry data (metrics, logs, and traces) to help you analyze your software’s performance and behavior.
Grafana Tempo is an open-source, easy-to-use, and high-scale distributed tracing backend. Tempo is cost-efficient, requiring only object storage to operate, and is deeply integrated with Grafana, Prometheus, and Loki.

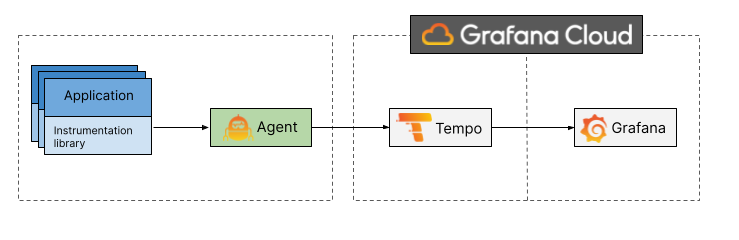

In the following diagram, I will show you how the flow will be between your application, OpenTelemetry, and Grafana Tempo.
To make the demo simpler I am using Grafana Cloud. Grafana Cloud is an open and composable observability platform that brings together metrics, logs and traces with Grafana visualizations. Built for cloud native environments and powered by the best open source observability software – including Prometheus, Grafana Mimir, Grafana Loki, and Grafana Tempo – Grafana Cloud lets you focus on enabling observability, without the overhead of building, installing, maintaining, and scaling your observability stack.
More details can be found under
Create Grafana Cloud User
For using the Grafana Cloud you can create a free user. This Free Forever Cloud user is limited. But for test and demo purposes this is fine. Also, I do not have any internal data so I can use the cloud.
After successful registration, you need to go to the details of Tempo and store the URL, the user, and the generated API key.
$ export TEMPO_URL=tempo-prod-08-prod-eu-west-3.grafana.net:443
$ export TEMPO_USER=101234
$ export TEMPO_APIKEY=USghh4VZFSFxFsrDicgXK53q95KESubjRyXhzzQfGAoGUX3DZdXAuVZfAsU9T8shk=Enabling Distributed Tracing
A cluster administrator has to enable the Distributed Tracing Platform operator once.

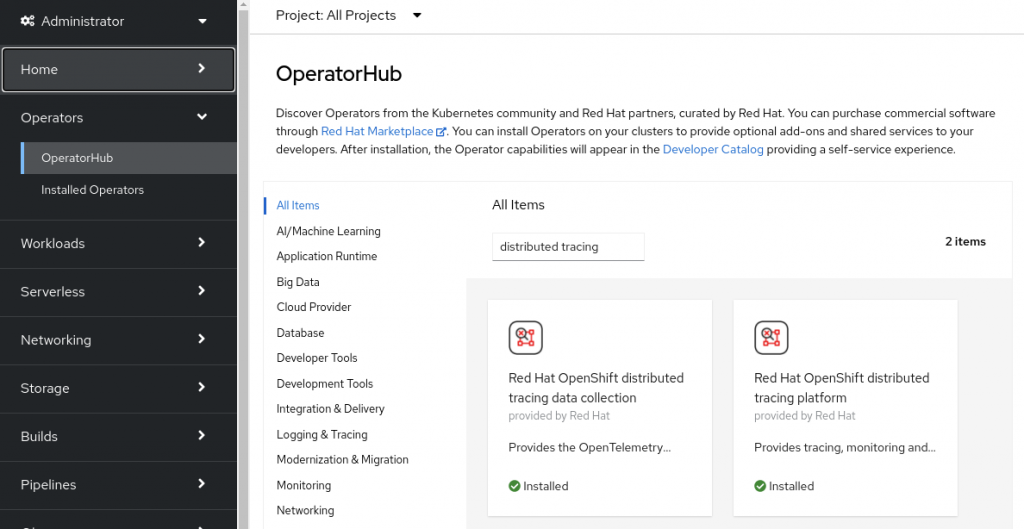

As of OpenShift 4.12, this is done easily using the OperatorHub on the OpenShift console. See Installing the Red Hat OpenShift distributed tracing platform Operator.
In this demo, we only need the OpenShift distributed tracing data collection Operator.
Make sure you are logged in as cluster-admin.
After a short time, you can check that the operator pod is created and running and the CRD is created:
$ oc get pod -n openshift-operators|grep opentelemetry
opentelemetry-operator-controller-manager-69f7f56598-nsr5h 2/2 Running 0 10d
$ oc get crd opentelemetrycollectors.opentelemetry.io
NAME CREATED AT
opentelemetrycollectors.opentelemetry.io 2021-12-15T07:57:38ZCreate a New Project
Create a new project (for example tempo-demo) and give a normal user (such as a developer) admin rights to the project:
$ oc new-project tempo-demo Now using project "tempo-demo" on server "https://api.yourserver:6443". You can add applications to this project with the 'new-app' command. For example, try:oc new-app rails-postgresql-exampleto build a new example application in Ruby. Or use kubectl to deploy a simple Kubernetes application: kubectl create deployment hello-node --image=k8s.gcr.io/serve_hostname $ oc policy add-role-to-user admin developer -n tempo-demo clusterrole.rbac.authorization.k8s.io/admin added: "developer"
Login as the Normal User
$ oc login -u developer
Authentication required for https://api.yourserver:6443 (openshift)
Username: developer
Password:
Login successful.
You have one project on this server: "tempo-demo"
Using project "tempo-demo".Create OpenTelemetry Collector
Create configmap and an OpenTelemetry Collector instance with the name my-otelcol.
$ export TEMPO_TOKEN=`echo -n "$TEMPO_USER:$TEMPO_APIKEY" | base64`
$ cat <<EOF |oc apply -f -
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
name: my-otelcol-tempo
spec:
spec:
config: |
receivers:
otlp:
protocols:
grpc:
http:
processors:
batch:
exporters:
logging:
loglevel: info
otlp:
endpoint: ${TEMPO_URL}
headers:
authorization: Basic ${TEMPO_TOKEN}
service:
pipelines:
traces:
receivers: [otlp]
processors: [batch]
exporters: [logging,otlp]
mode: deployment
resources: {}
targetAllocator: {}
EOF
opentelemetrycollector.opentelemetry.io/my-otelcol-tempo createdWhen the OpenTelemetryCollector instance is up and running you can check the log.
$ oc logs deployment/my-otelcol-tempo-collector
2023-03-16T11:04:31.454Z info service/telemetry.go:110 Setting up own telemetry...
2023-03-16T11:04:31.454Z info service/telemetry.go:140 Serving Prometheus metrics {"address": ":8888", "level": "basic"}
2023-03-16T11:04:31.454Z info components/components.go:30 In development component. May change in the future. {"kind": "exporter", "data_type": "traces", "name": "logging", "stability": "in development"}
2023-03-16T11:04:31.454Z warn [email protected]/factory.go:110 'loglevel' option is deprecated in favor of 'verbosity'. Set 'verbosity' to equivalent value to preserve behavior. {"kind": "exporter", "data_type": "traces", "name": "logging", "loglevel": "info", "equivalent verbosity level": "normal"}
2023-03-16T11:04:31.455Z info service/service.go:89 Starting otelcol... {"Version": "0.63.1", "NumCPU": 4}
2023-03-16T11:04:31.455Z info extensions/extensions.go:42 Starting extensions...
2023-03-16T11:04:31.455Z info pipelines/pipelines.go:74 Starting exporters...
2023-03-16T11:04:31.455Z info pipelines/pipelines.go:78 Exporter is starting... {"kind": "exporter", "data_type": "traces", "name": "logging"}
2023-03-16T11:04:31.455Z info pipelines/pipelines.go:82 Exporter started. {"kind": "exporter", "data_type": "traces", "name": "logging"}
2023-03-16T11:04:31.455Z info pipelines/pipelines.go:78 Exporter is starting... {"kind": "exporter", "data_type": "traces", "name": "otlp"}
2023-03-16T11:04:31.456Z info pipelines/pipelines.go:82 Exporter started. {"kind": "exporter", "data_type": "traces", "name": "otlp"}
2023-03-16T11:04:31.456Z info pipelines/pipelines.go:86 Starting processors...
2023-03-16T11:04:31.456Z info pipelines/pipelines.go:90 Processor is starting... {"kind": "processor", "name": "batch", "pipeline": "traces"}
2023-03-16T11:04:31.456Z info pipelines/pipelines.go:94 Processor started. {"kind": "processor", "name": "batch", "pipeline": "traces"}
2023-03-16T11:04:31.456Z info pipelines/pipelines.go:98 Starting receivers...
2023-03-16T11:04:31.456Z info pipelines/pipelines.go:102 Receiver is starting... {"kind": "receiver", "name": "otlp", "pipeline": "traces"}
2023-03-16T11:04:31.456Z info otlpreceiver/otlp.go:71 Starting GRPC server {"kind": "receiver", "name": "otlp", "pipeline": "traces", "endpoint": "0.0.0.0:4317"}
2023-03-16T11:04:31.457Z info otlpreceiver/otlp.go:89 Starting HTTP server {"kind": "receiver", "name": "otlp", "pipeline": "traces", "endpoint": "0.0.0.0:4318"}
2023-03-16T11:04:31.457Z info pipelines/pipelines.go:106 Receiver started. {"kind": "receiver", "name": "otlp", "pipeline": "traces"}
2023-03-16T11:04:31.457Z info service/service.go:106 Everything is ready. Begin running and processing data.
You can update the collector by:
$ oc edit opentelemetrycollector my-otelcol-tempoSample Application
Deploy a Sample Application
All modern application development frameworks (like Quarkus) support OpenTelemetry features, Quarkus – USING OPENTELEMETRY.
To simplify this document, I am using an existing example. The application is based on an example at GitHub – rbaumgar/otelcol-demo-app: Quarkus demo app to show OpenTelemetry with Jaeger.
Deploying a sample application monitor-demo-app and exposing it as a route:
$ cat <<EOF |oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: otelcol-demo-app
app.kubernetes.io/name: otelcol-demo-app
app.kubernetes.io/version: 1.0.0-SNAPSHOT
app.openshift.io/runtime: quarkus
name: otelcol-demo-app
spec:
replicas: 1
selector:
matchLabels:
app: otelcol-demo-app
template:
metadata:
labels:
app: otelcol-demo-app
app.openshift.io/runtime: quarkus
app.kubernetes.io/name: otelcol-demo-app
app.kubernetes.io/version: 1.0.0-SNAPSHOT
spec:
containers:
- image: quay.io/rbaumgar/otelcol-demo-app-jvm
imagePullPolicy: Always
name: otelcol-demo-app
---
apiVersion: v1
kind: Service
metadata:
labels:
app: otelcol-demo-app
app.kubernetes.io/name: otelcol-demo-app
app.kubernetes.io/version: 1.0.0-SNAPSHOT
app.openshift.io/runtime: quarkus
name: otelcol-demo-app
spec:
ports:
- port: 8080
protocol: TCP
targetPort: 8080
name: web
selector:
app: otelcol-demo-app
type: ClusterIP
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
labels:
app: otelcol-demo-app
app.kubernetes.io/name: otelcol-demo-app
app.kubernetes.io/version: 1.0.0-SNAPSHOT
app.openshift.io/runtime: quarkus
name: otelcol-demo-app
spec:
path: /
to:
kind: Service
name: otelcol-demo-app
port:
targetPort: web
tls:
termination: edge
EOF
deployment.apps/otelcol-demo-app created
service/otelcol-demo-app created
route.route.openshift.io/otelcol-demo-app exposed
$oc set env deployment/otelcol-demo-app \
OTELCOL_SERVER=http://my-otelcol-tempo-collector:4317 \
SERVICE_NAME=https://`oc get route otelcol-demo-app -o jsonpath='{.spec.host}'`
deployment.apps/otelcol-demo-app updatedYou may need to add an environment variable with the name OTELCOL_SERVER to specify a different URL for the OpenTelemetry Collector.
Test Sample Application
Check the router URL with /hello and see the hello message with the pod name. Do this multiple times.
$ export URL=https://$(oc get route otelcol-demo-app -o jsonpath='{.spec.host}')
$ curl $URL/hello
hello
$ curl $URL/sayHello/demo1
hello: demo1
$ curl $URL/sayRemote/demo2
hello: demo2 from http://otelcol-demo-app-jaeger-demo.apps.rbaumgar.demo.net/
...Go to the Grafana Cloud URL.
Launch Grafana.
Click on Explore.
Select Query type Search and Run Query.

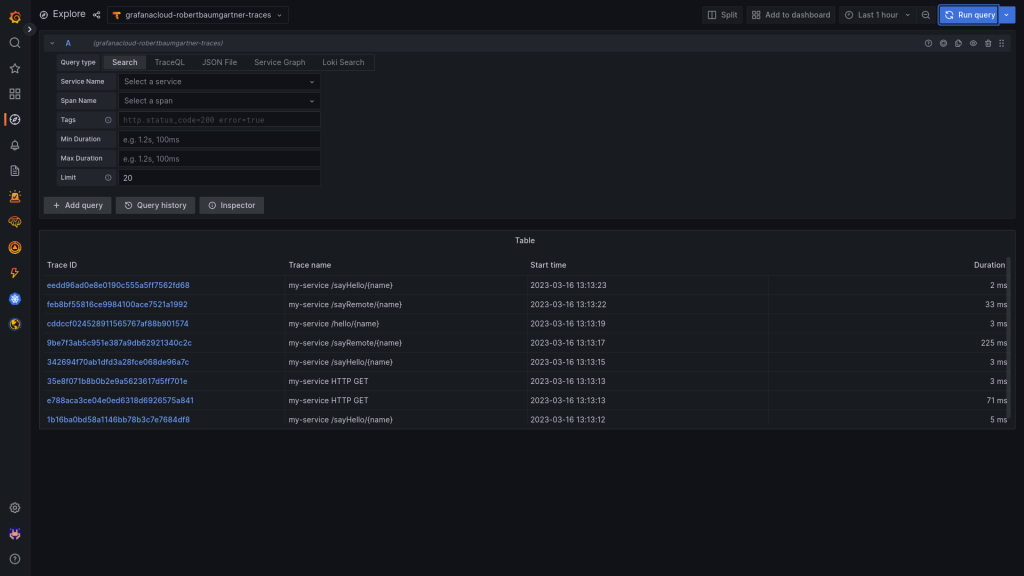

Find Traces…
You can select some details on the query, e.g.
- Service Name: you can select the service name specified in the application.properties (quarkus.application.name) of the demo app.
- Tags: you can select the name of the trace, e.g. name=”/sayRemote/{name}” in my demo application.
- Min/Max Duration: select only traces that takes very long, e.g. min = 500ms

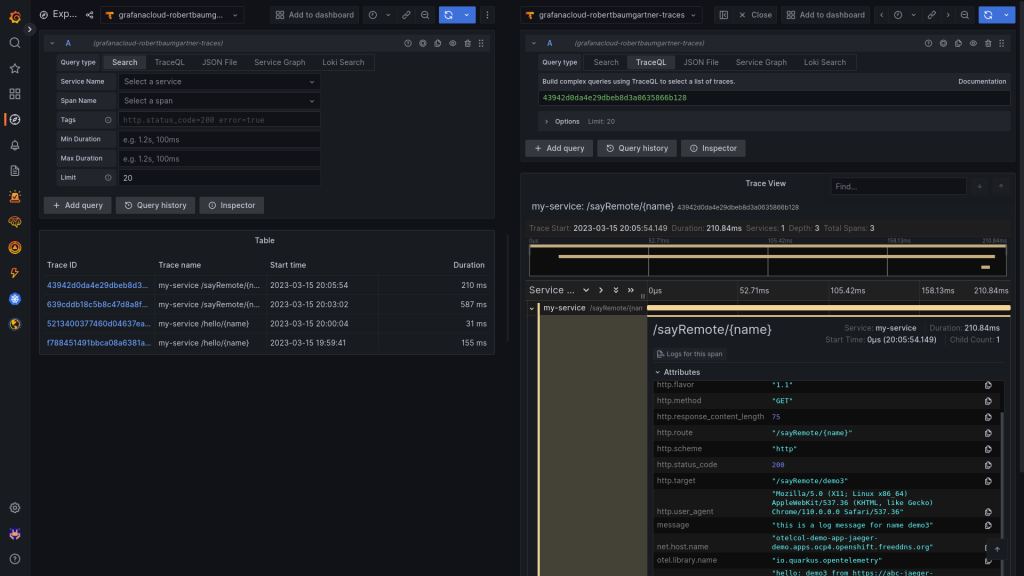

Open one trace entry and expand it to get all the details.
Done!
If you want more details on how the OpenTelemetry is done in Quarkus go to the GitHub example at GitHub – rbaumgar/otelcol-demo-app: Quarkus demo app to show OpenTelemetry.
Remove this Demo
$ oc delete deployment,svc,route otelcol-demo-app
$ oc delete opentelemetrycollectors my-otelcol-tempo
$ oc delete project tempo-demoThis document:
